BSIDE ACM91 디지털 AC/DC 전류 클램프 미터 자동 범위 자동차 수리 TRMS 멀티 미터 라이브 체크 NCV 주파수 커패시터 테스터

가격(KRW): [price_with_discount] ₩(원)

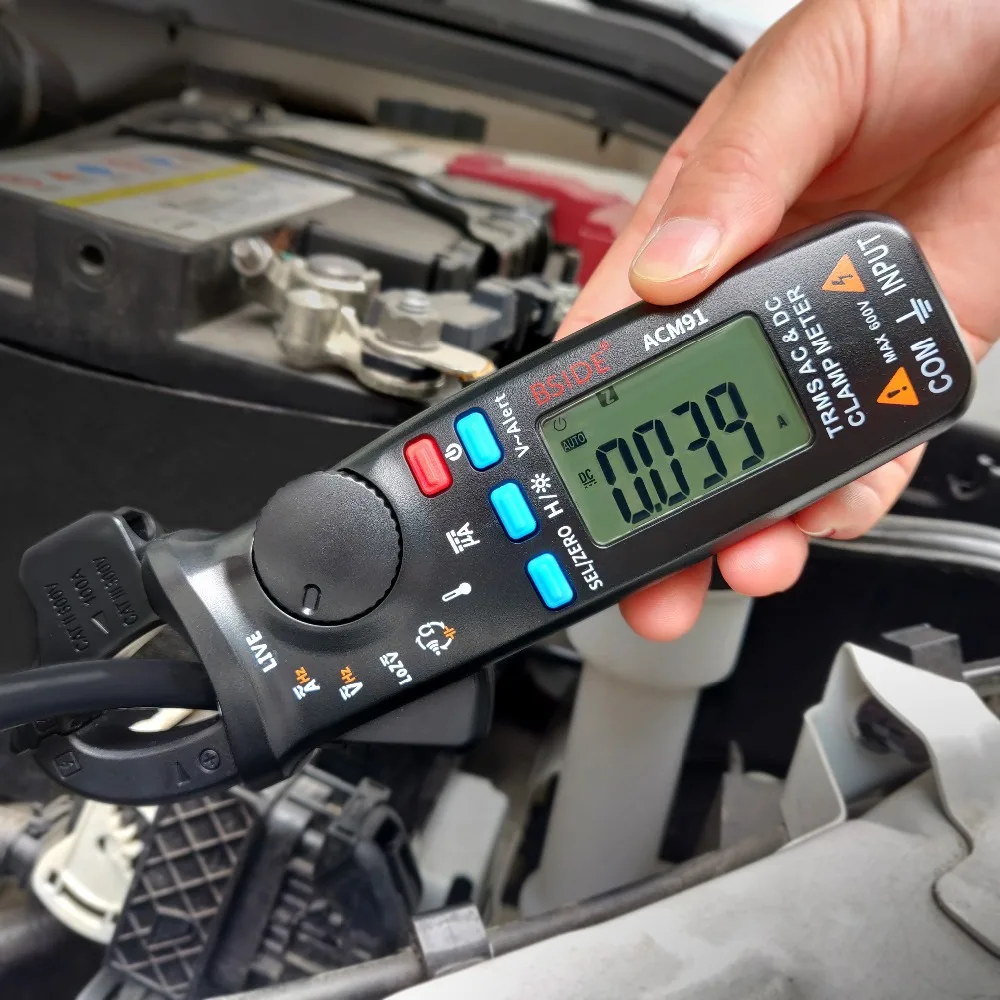

Do you know how to use it to repair your car?

After turn on it press "ZERO" button more than 2 seconds, and the clamp meter top keeps the original direction and moves forward to clamping the wire finally press "hold" button to get the important readings.

Features:

Measure both DC current and AC current (minimum 1mA by jaws)
Measure microamps μA (minimum 0.1μA by terminals)
Measure AC and DC voltage
Measure frequency
Low impedance voltage measurement

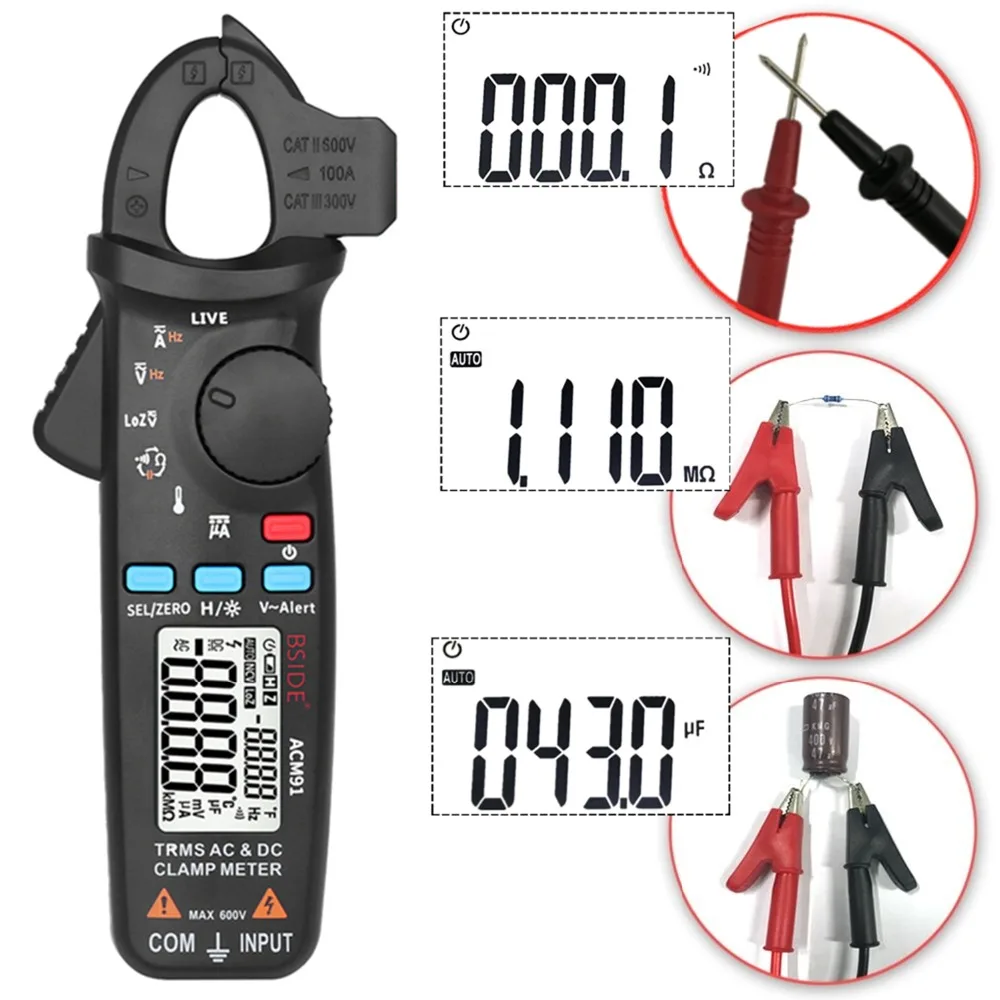

Measure resistance, continuity and capacitance
Measure temperature
Live check function
V-alert measurement
Clamp on frequency function
Auto range
Data hold
Auto power off
Back light
Conform to the IEC-61010-1, IEC-61010-2-030, IEC-61010-2-032, IEC-61010-2-033 standards
Over-voltage protection class CAT III 300V, CAT II 600V, pollution degree II

Specifications:

Display: 6000 counts
DC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(3.0%+5counts)
DC current(uA):0-200uA 0.1uA ±(0.8%+5counts)
AC current: 6A/60A/100A 0.001A/0.01A/0.1A ±(2.5%+5counts)
In 6A range, resolution is 0.001A, the test range is 0.001A~6A.
In 60A range, resolution is 0.01A, the test range is 0.01A~60A.
In 100A range, resolution is 0.1A, the test range is 0.1A~100A.
DC voltage: 6V/60V/600V 0.001V/0.01V/0.1V ±(1.0%+3counts)
AC voltage: 6V/60V/600V 0.001V/0.01V/0.1V ±(1.0%+3counts)
Low impedance LOZ: Max 600V Resolution 0.1V
Resistance:
600/6k/60k/600k/6M ohm 0.1/0.001K/0.01K/0.1K/0.001M ohm ±(1.0%+3counts)
60Mohm 0.01Mohm ±(1.2%+20counts)
Capacitance: 600uF/6000uF 0.1uF/1uF ±(4.0%+3counts)
Frequency: 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5counts)
Frequency（by jaws): 60Hz/1000Hz 0.1Hz/1Hz ±(1.0%+5counts)
Buzzer: If the resistance is less than 30Ω, the continuity beeper sounds.
Temperature: -20°C~500°C 1°C/2°F (2.0%+2counts)
Jaw Capacity: 20mm
Power: 1.5V (AAA) x 2 (not included)
Size: 179mm x 67mm x 36 mm
Weight: 137g
